Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2017-2021

Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2017-2021

SKU:KT2133-NOHK

Precio habitual $429.99 USD
Precio habitual $0.00 USD Precio de oferta $429.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Ver todos los detalles

Contenido desplegable

Product Parameters

Brand Idoing Multi media Parameters
Din  1 din Music Format MP3,WMA,AAC,RM,FLAC etc
Operating System Android 12 system Picture Format JPG/BMP/JEPG/GIF/PNG
CPU ARM 12NM , Octa core  2.0 GHZ 2*A75+1.8GHZ 6*A55 Video Format MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip
DDR
SAMSUNG DDR3 4GB
Radio Parameters
EMMC 64GB Frenqency Range FM:76.0MHz-108.0MHz
AM: 522KHz-1620KHz
Max External Memory 128G Country Australia,Europe,Russia, USA1,USA2,
Radio FM/AM Amplifer Parameters
Screen 2.5D IPS Full Touch Screen Test Voltage 14.4V
Screen Resolution 1280*720 Max output power 4*50W
GPU ARM Mali G52 614.4MHz GPS Parameters
Radio IC NXP 6686 Support Map Map:google/here/sygic /tomtom/waze/igo...
Power amplifier IC TDA7850 Main Frenqency 1.575GHz
Bluetooth IC BC 5.0   WIFI Parameters
Power supply 4*45W max RF Power 15dBM
Video Decoder 1080P HW Power supply Vcc_3.3V
DSP 32-Bands Equalisation Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN
OSD Language
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
Interface type USB2.0
Built in
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
Frequency 2.4-2.484GHz

Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
Modulation OFDM/DBPSK/DQPSK/CCK
  • Android 12.0 Operating System

    ARM 12NM Octa-Core, 64 bit CPU

    2.0GHz,Dual-Core ARM Cortex A75

    1.8GHz,Hexa-Core ARM Cortex A55

  • Built-in Android Auto & Apple Carplay

    Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

  • Support OEM Factory Camera

    Support AHD reversing signal input with a resolution of 1080p.

    Click this picture to buy this camera.

  • Support Steering Wheel Control

    Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

  • 2.5D IPS QLED Full Touch Screen

    2.5D,prevent scraping,IPS screen for all viewing angles very clear.

  • Cool 3D Navigation (GPS+Glonass Dual Satellite)

    1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
    2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
    3.Support maps:google/here/sygic/tomtom/waze/igo...

  • Qualcomm bluetooth 5.0

    1.Built-in bluetooth for hand free calling.

    2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

    3.Can connect your phone and our OBD dongle simultaneously.

    4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

    5.Can not support:file transfer,internet sharing.

  • Build-in 32 Equalizer Digital Signal Processing(DSP)

    Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

  • Optional

  • Package

Customer Reviews

Based on 14 reviews
79%
(11)
14%
(2)
7%
(1)
0%
(0)
0%
(0)
T
Tyler
Great upgrade

This thing is pretty awesome. I never installed an upgrade to my Subaru. Getting the original head unit out was pretty tough, but with some YouTube videos helping me I was able to do it. Installing the new device was so easy. It looks great and runs really well. If you have any knowledge of diy car upgrades this will be a dead simple install. Highly recommend the Subaru head unit after 4 weeks of use.

J
Juan Sanchez
2018 Impreza sport

Installation was a little tricky if you have starlink. You have to remove and transfer the starlink to the new system and somehow tape it to the new system otherwise the front speakers will not work. Over all small issues but super happy with the fit and the sound quality itself 2018 Impreza sport> i wish they made one for F350
Please enter

C
Christopher D.
Good but needs better instructions

Unit is over priced, build quality is not the best, it is plug and play however some features took a while to get working, reversing camera was a pain to set up and wired CarPlay still doesn’t work, screen is a good size but has a slight delay in response to touch, would appreciate being able to customise home screen as weep as boot up screen but unit can’t process those changes, there is also a quite fuzzy sound whenever o try play music. I’m sure that having a more detailed installation Manuel can help first time installers.

e
elliot davies
definitely would buy this again!

amazing radio took a little time to get 100% complete and setup but zayne from idoing helped me w awesome customer service

N
Nathan
Great Radio!

I got the radio for the Crosstrek to put in my 2021 Crosstrek Sport.

I had been sitting on making this purchase for a while, debating if I really needed it. I did eventually decide to pull the trigger. The install was a little bit of a process, but went smoothly. Afterwards, the radio was far better than I was expecting! The screen looks much nicer than the stock 6" headunit, and much larger. I mostly use it for CarPlay, but occasionally I use Torque Pro for monitoring vehicle statistics and such. Definitely worth the purchase!

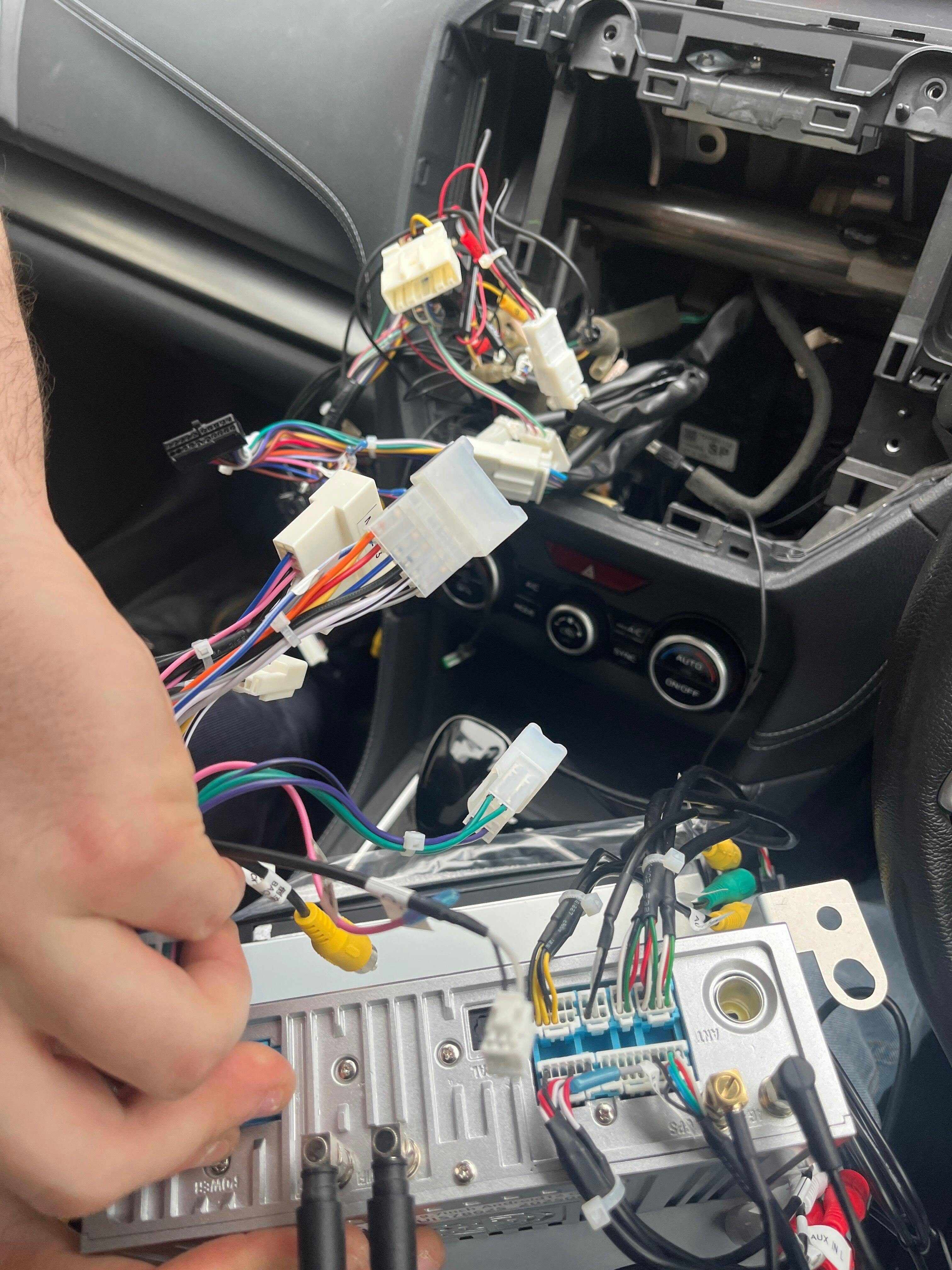

A couple tips for others who install this radio:

The screws holding the radio and attached modules look like standard Philips, but they are a Japanese variant called JIS. Borrow some, order one online, or something. You WILL strip screw heads using a Philips screwdriver! They are extremely tight.

Also, the 2 modules that sit on top of the OEM headunit. Those won't fit above the new one, so I put them below the new one, at a bit of an angle.
