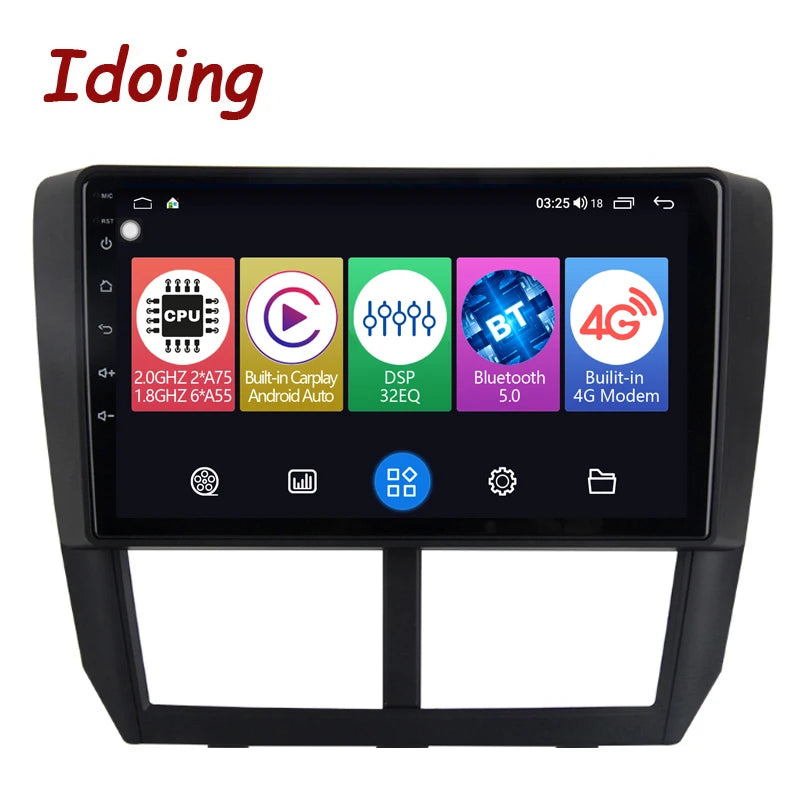

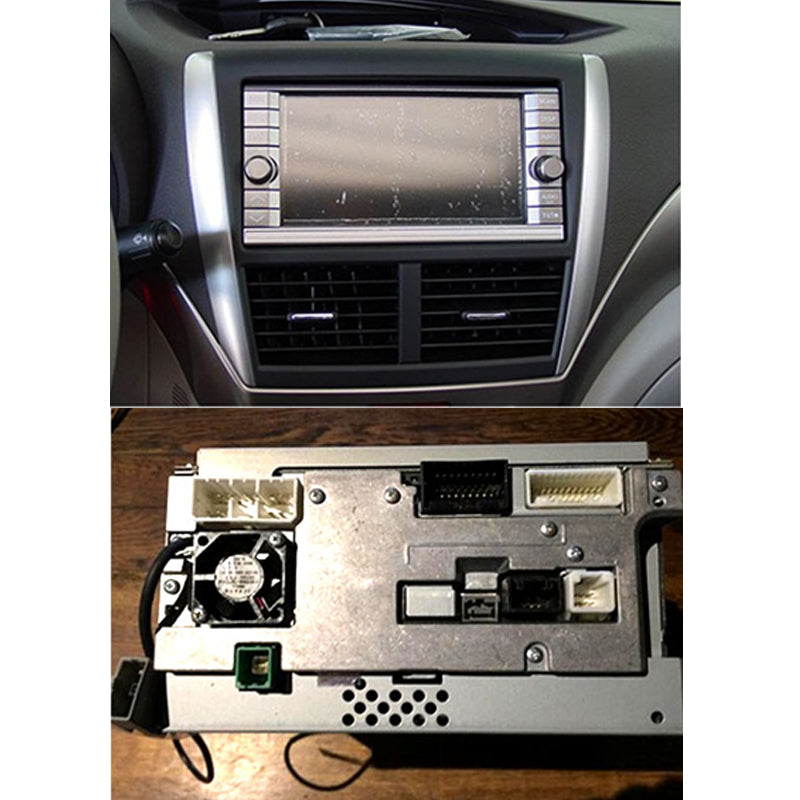

Idoing 9inch Android 12 Radio Head Unit For Subaru Forester WRX 2008-2014

Idoing 9inch Android 12 Radio Head Unit For Subaru Forester WRX 2008-2014

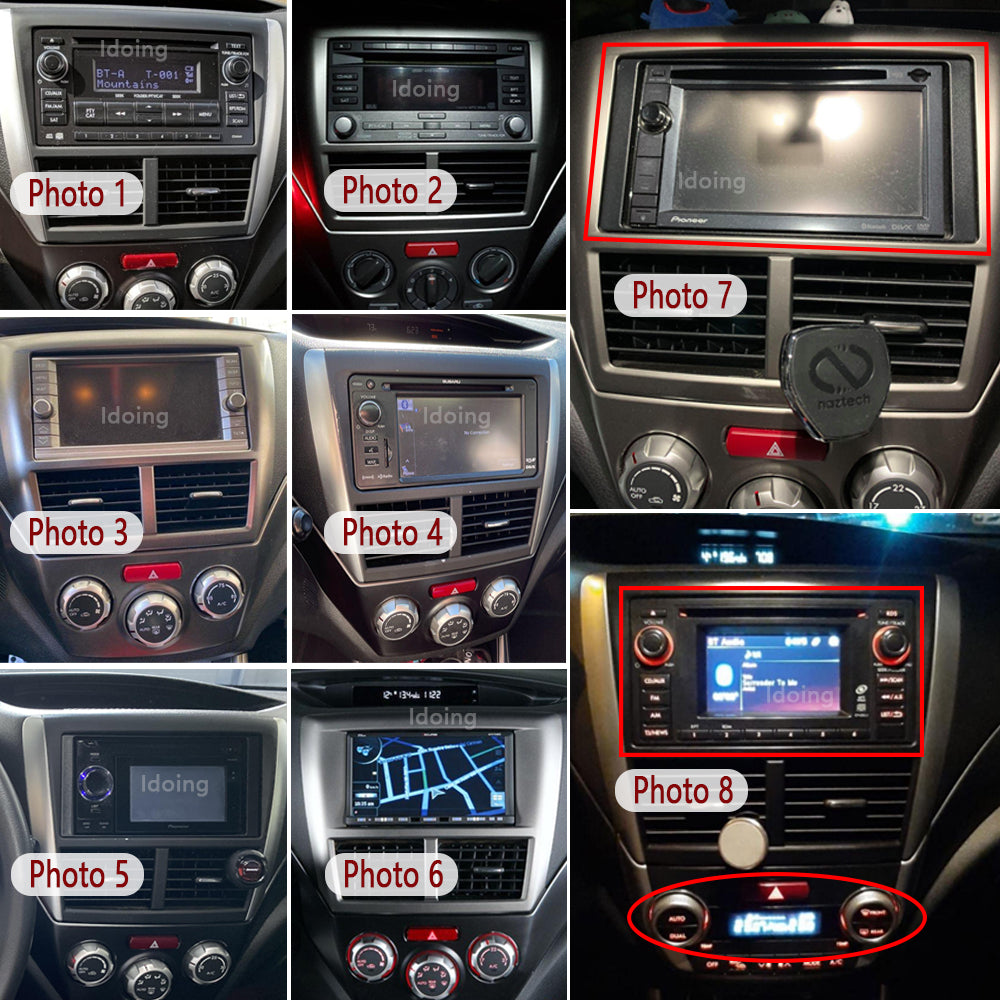

SKU:PPP2299-Photo1

Regular price $399.99 USD
Regular price Sale price $399.99 USD
Sale Sold out
Type
paypal visa american express diners club discover maestro master View full details

Collapsible content

Product Parameters

Brand Idoing Multi media Parameters
Din  1 din Music Format MP3,WMA,AAC,RM,FLAC etc
Operating System Android 12 system Picture Format JPG/BMP/JEPG/GIF/PNG
CPU ARM 12NM , Octa core  2.0 GHZ 2*A75+1.8GHZ 6*A55 Video Format MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip
DDR
SAMSUNG DDR3 4GB
Radio Parameters
EMMC 64GB Frenqency Range FM:76.0MHz-108.0MHz
AM: 522KHz-1620KHz
Max External Memory 128G Country Australia,Europe,Russia, USA1,USA2,
Radio FM/AM Amplifer Parameters
Screen 2.5D IPS Full Touch Screen Test Voltage 14.4V
Screen Resolution 1280*720 Max output power 4*50W
GPU ARM Mali G52 614.4MHz GPS Parameters
Radio IC NXP 6686 Support Map Map:google/here/sygic /tomtom/waze/igo...
Power amplifier IC TDA7850 Main Frenqency 1.575GHz
Bluetooth IC BC 5.0   WIFI Parameters
Power supply 4*45W max RF Power 15dBM
Video Decoder 1080P HW Power supply Vcc_3.3V
DSP 32-Bands Equalisation Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN
OSD Language
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
Interface type USB2.0
Built in
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
Frequency 2.4-2.484GHz

Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
Modulation OFDM/DBPSK/DQPSK/CCK
  • Android 12.0 Operating System

    ARM 12NM Octa-Core, 64 bit CPU

    2.0GHz,Dual-Core ARM Cortex A75

    1.8GHz,Hexa-Core ARM Cortex A55

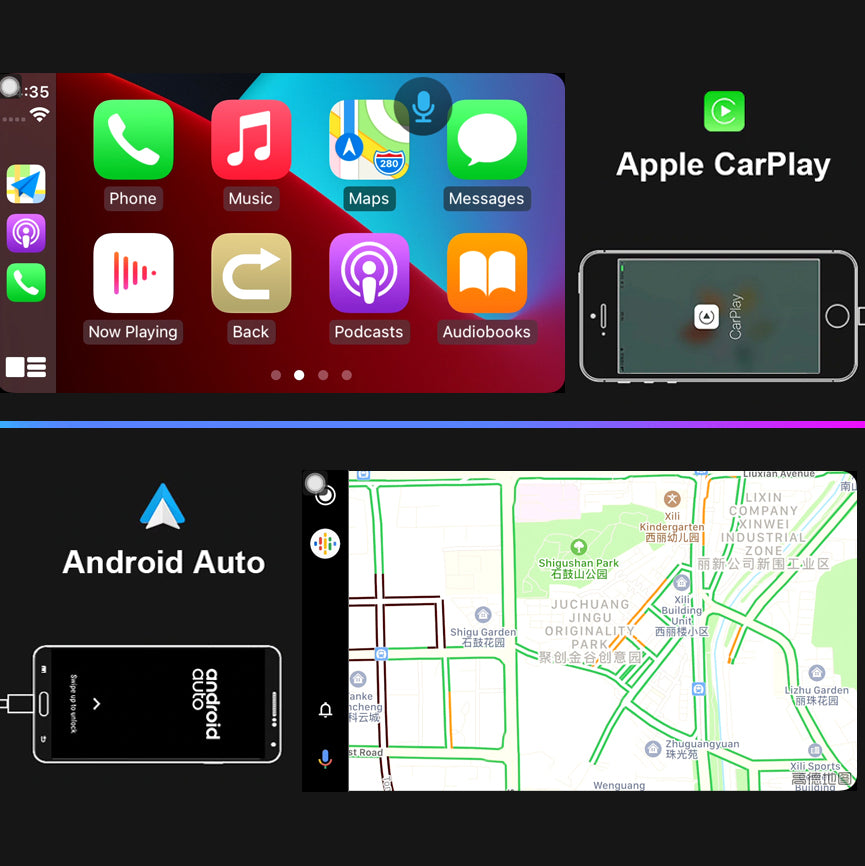

  • Built-in Android Auto & Carplay (All Support Wireless+Wire)

    Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

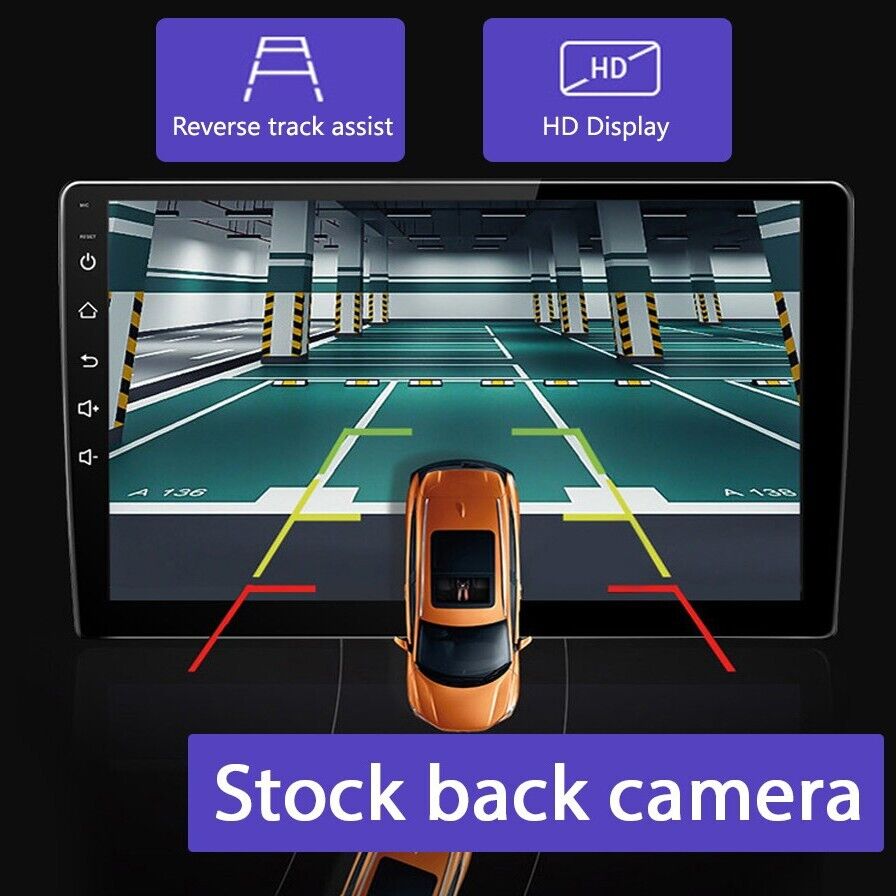

  • Support OEM Factory Camera

    Support AHD reversing signal input with a resolution of 1080p.

    Click this picture to buy this camera.

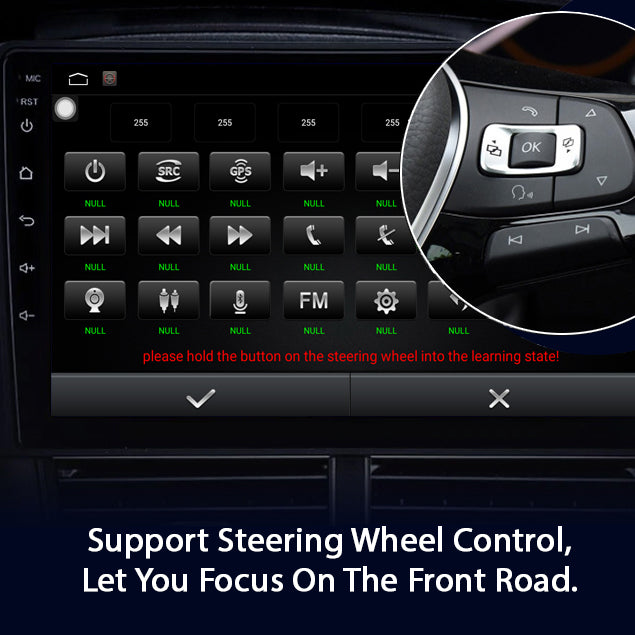

  • Support Steering Wheel Control

    Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

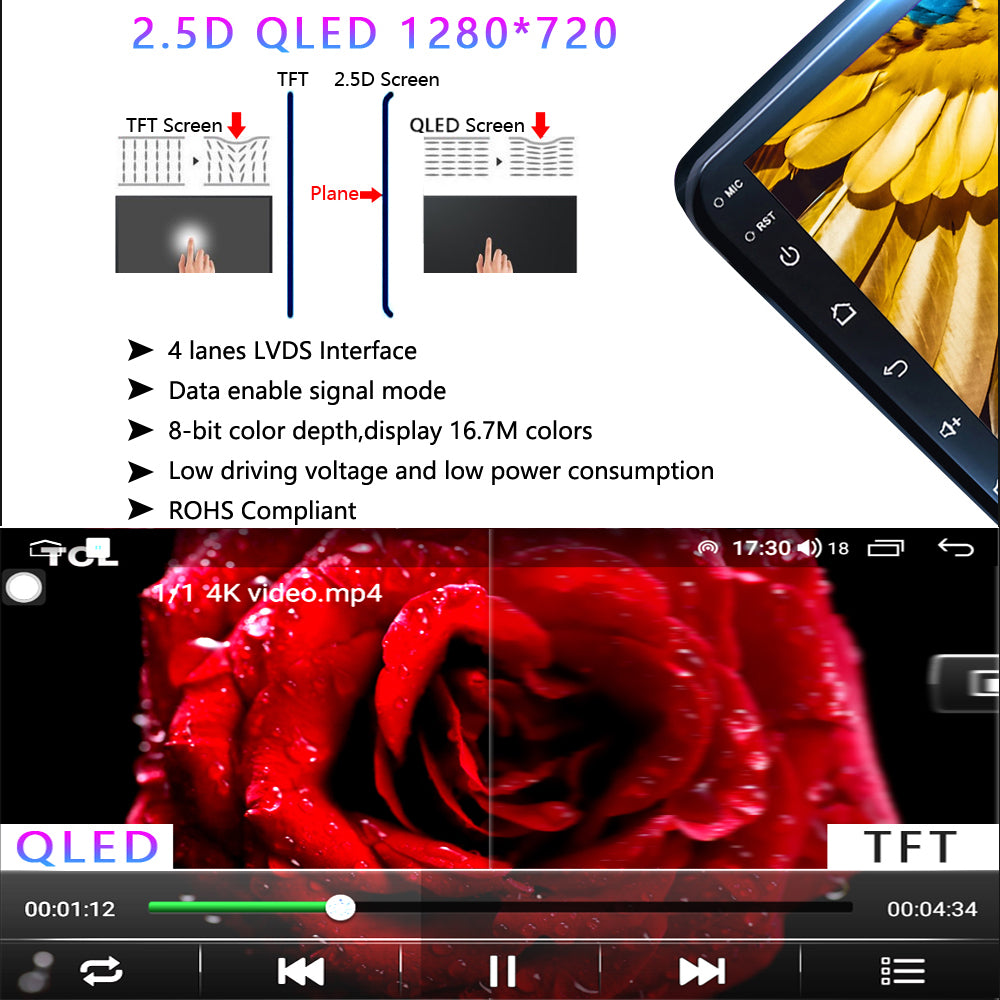

  • 2.5D IPS QLED Full Touch Screen

    2.5D,prevent scraping,IPS screen for all viewing angles very clear.

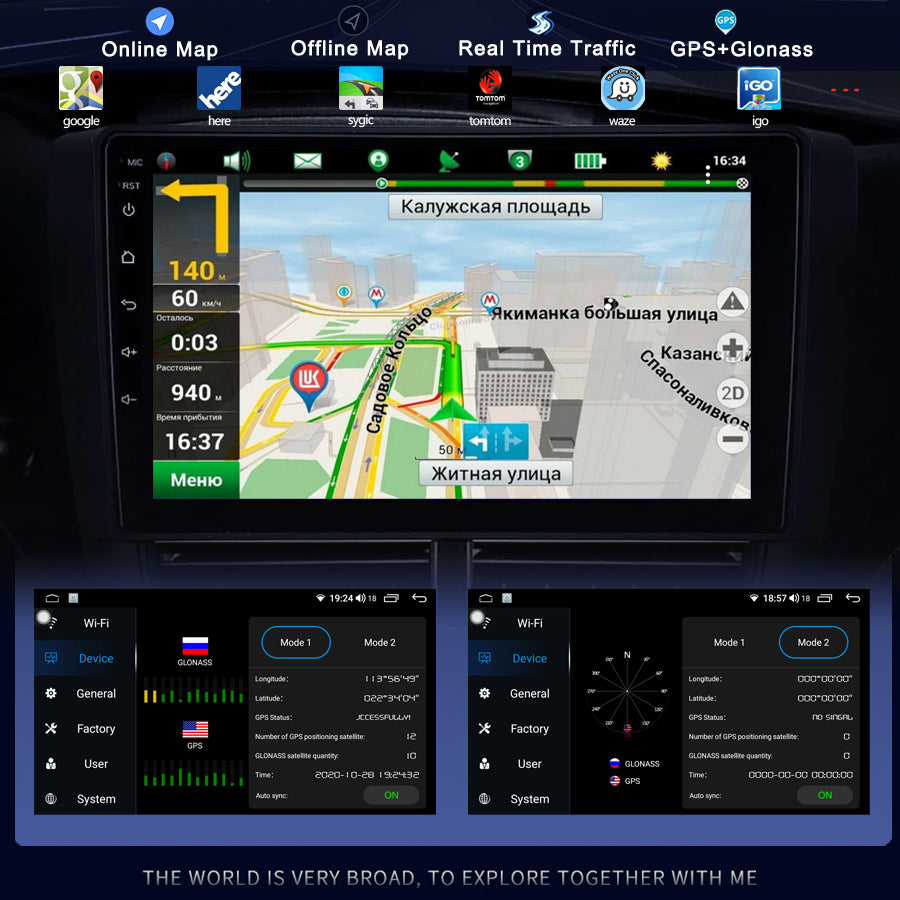

  • Cool 3D Navigation (GPS+Glonass Dual Satellite)

    1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
    2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
    3.Support maps:google/here/sygic/tomtom/waze/igo...

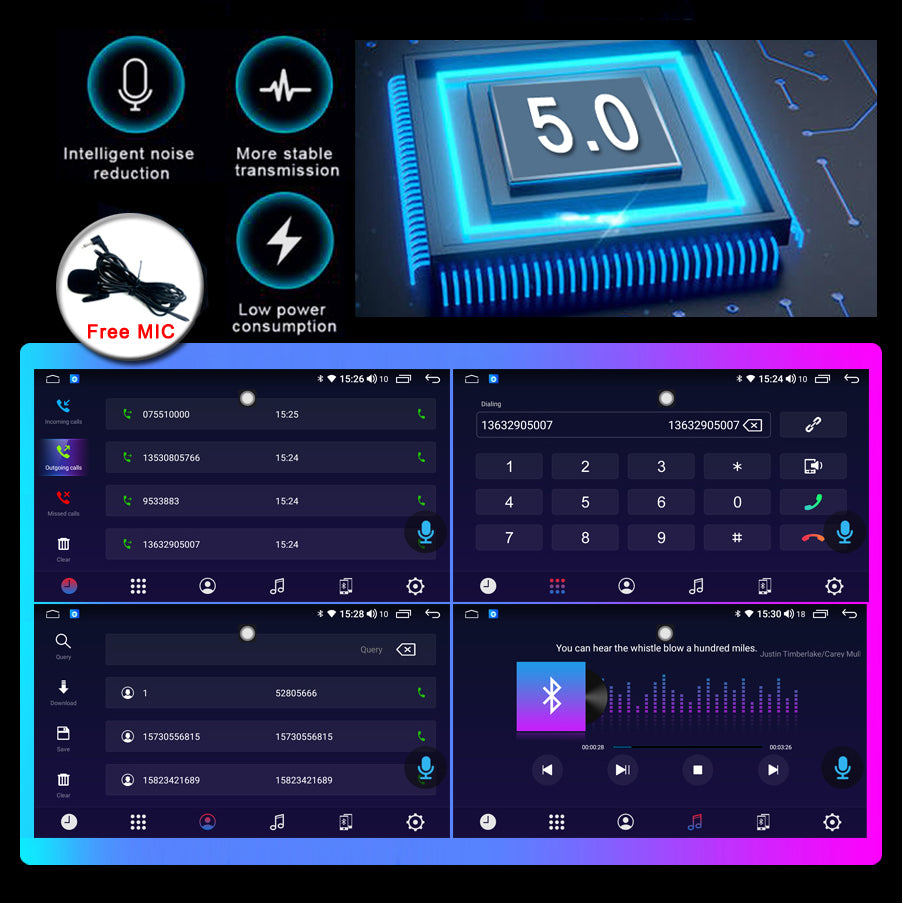

  • Qualcomm bluetooth 5.0

    1.Built-in bluetooth for hand free calling.

    2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

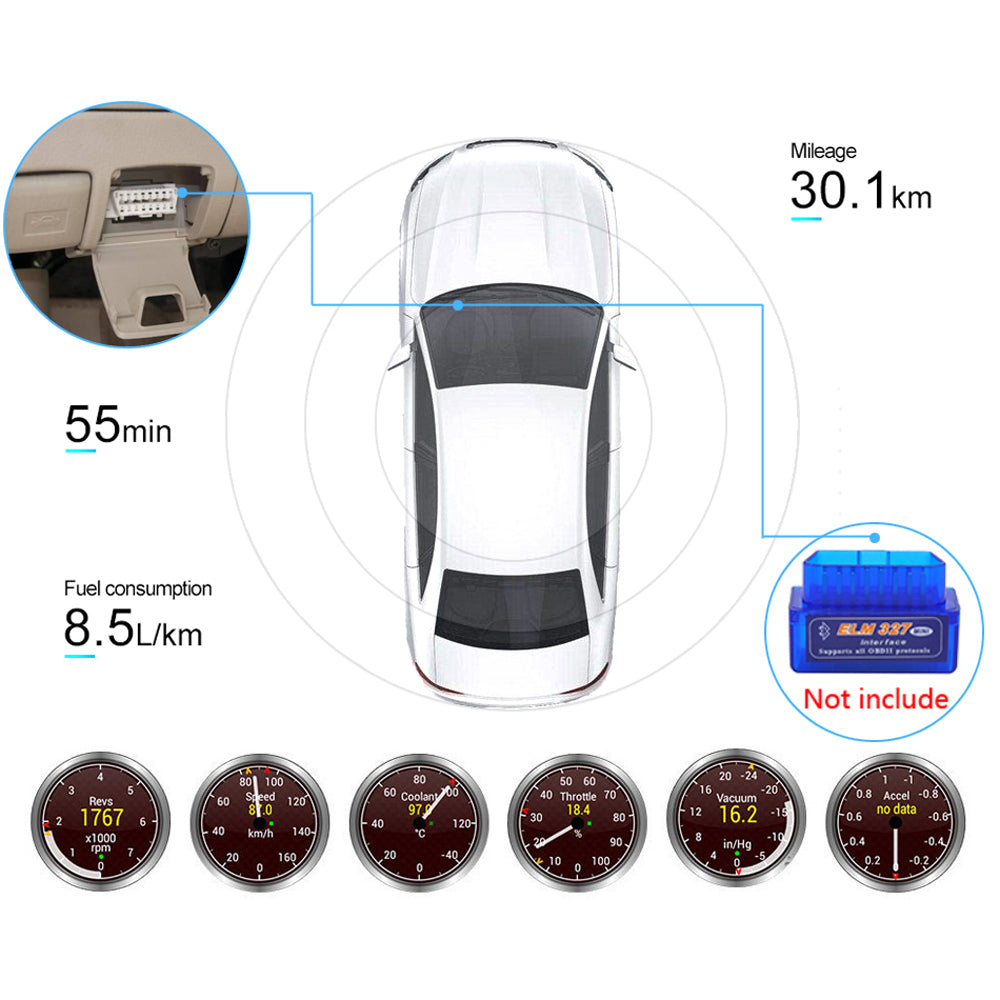

    3.Can connect your phone and our OBD dongle simultaneously.

    4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

    5.Can not support:file transfer,internet sharing.

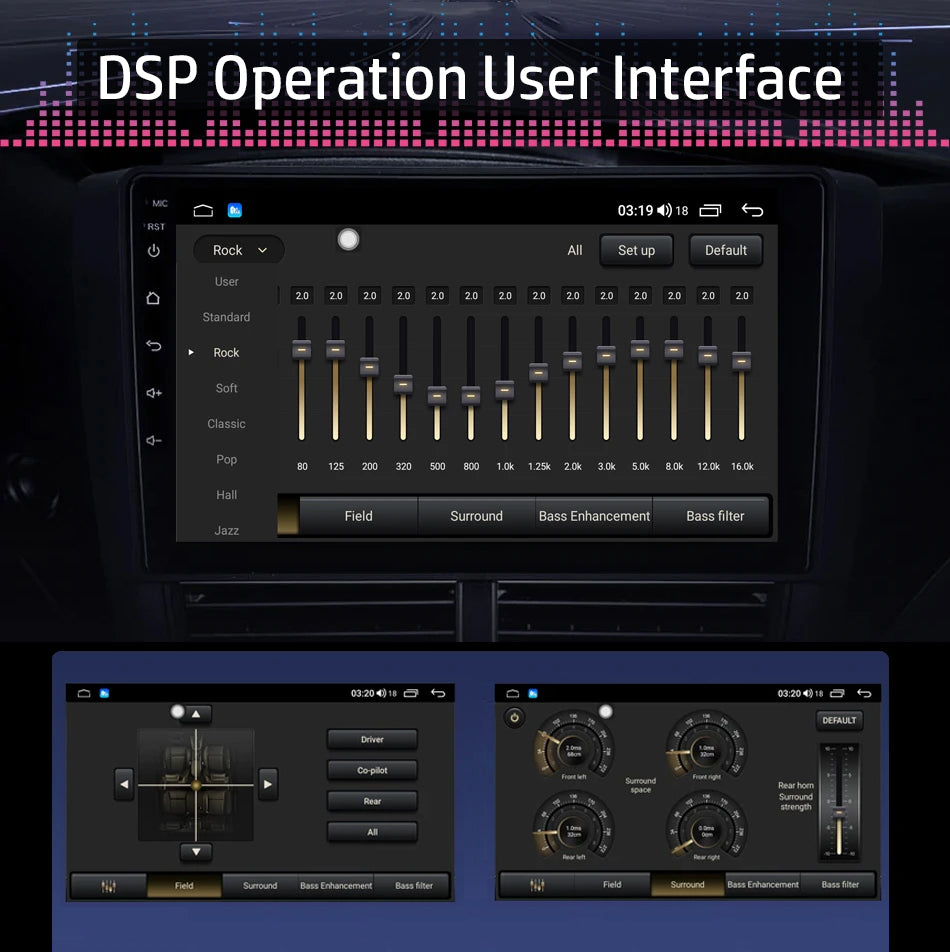

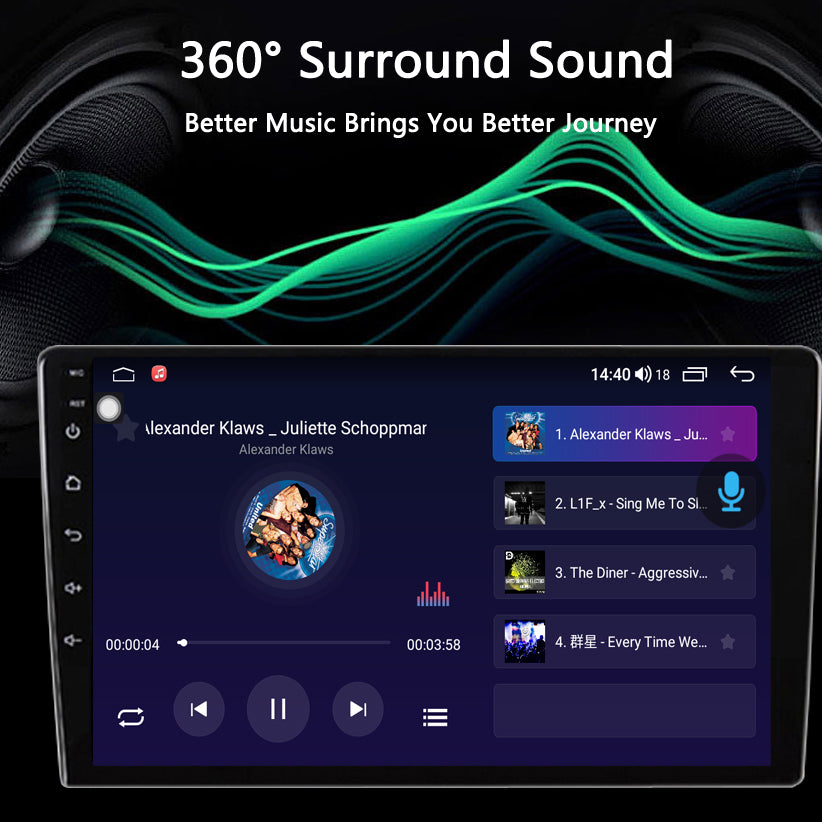

  • Build-in 32 Equalizer Digital Signal Processing(DSP)

    Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

  • Optional

  • Package

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
0%
(0)
25%
(1)
0%
(0)
N
Noey
Somewhat disappointed

This is regarding an install on a 2012 Forester. I had big expectations on this head unit. It was easy enough to install. No instructions on the head unit but many YouTube videos out there. What disappointed me the most is the fact that I lost my rear speakers. Customer service wasn’t too helpful either. This is a quote from them: “This car audio system has a limitation when it comes to equalizer settings. Since the amplifier only requires two channels for audio output, the four lines of head unit dynamics also use only two channels. As a result, the left and right rear speakers cannot be adjusted independently in the equalizer sound field, limiting the customization options for the sound system.” My issue wasn’t left or right balance settings, it was that the rear speakers were not working at all. For the amount I paid to have it imported to Canada and the weak Canadian dollar currently, this plug and play unit has got me very upset. I had to dig through many YouTube videos to research this and I think I know a work around the issue but I’ll try that later. It’s currently Chinese new years there so they put me on hold…

C
Chris Sheppard
Incredible for the money!

After many hours researching i took the plunge and ordered direct from Idoing. Couldn't be happier. Great service to start then delivered to Sydney in 6 days. Super easy to install and i am amazed how much better the sound is! I got the 8gig with standard screen and it is super clear and responsive.

J
Jake McEntire
Great unit and worth the money I wish it had more English user manual options

I love the stereo and am very happy I bought it but I cant seem to find any user instructions with it and the Idoing info that it came with was a QR code to asain based youtube videos about set up that I couldnt seem to help me get all the way. But other than that I really like it and the fact I can stream video while driving and the wireless apple carplay and shipping was fast too. Great unit dont buy a knock off.

L
Luis Ho
Perfect fit. Looks inique

Very friendly staff. I installed in two of my wrx.
