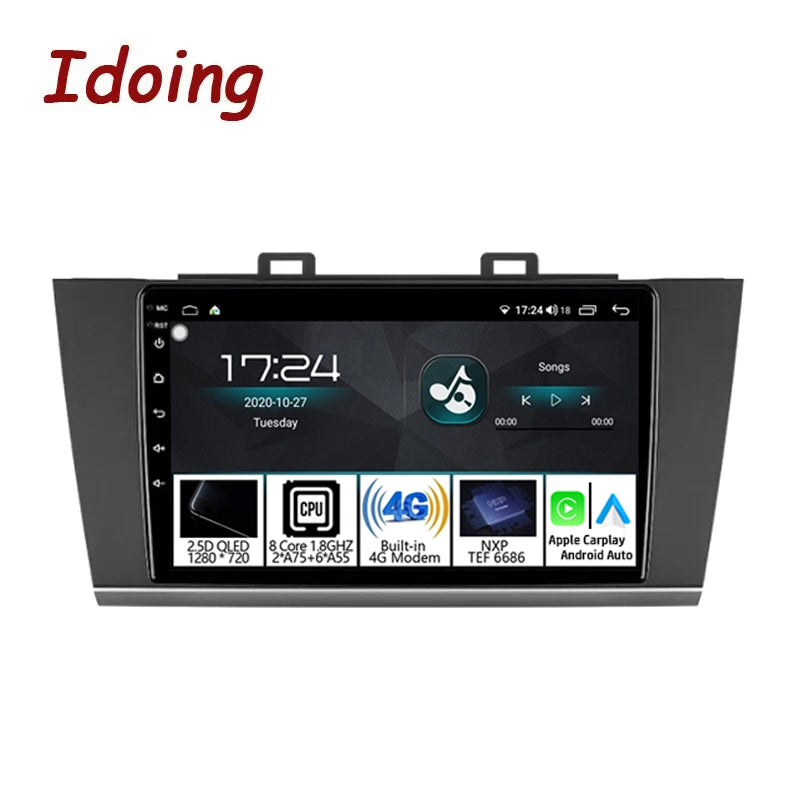

Idoing 9inch Android 12 Radio Head Unit For 2014-2019 Subaru Outback 5 Legacy 6 Levorg
Idoing 9inch Android 12 Radio Head Unit For 2014-2019 Subaru Outback 5 Legacy 6 Levorg
SKU:KT2336-nocan
Couldn't load pickup availability

Collapsible content
Product Parameters
| Brand | Idoing | Multi media Parameters | |
| Din | 1 din | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 12 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| CPU | ARM 12NM , Octa core 2.0 GHZ 2*A75+1.8GHZ 6*A55 | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip |
| DDR |
SAMSUNG DDR3 4GB
|
Radio Parameters | |
| EMMC | 64GB | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Max External Memory | 128G | Country | Australia,Europe,Russia, USA1,USA2, |
| Radio | FM/AM | Amplifer Parameters | |
| Screen | 2.5D IPS Full Touch Screen | Test Voltage | 14.4V |
| Screen Resolution | 1280*720 | Max output power | 4*50W |
| GPU | ARM Mali G52 614.4MHz | GPS Parameters | |
| Radio IC | NXP 6686 | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Power amplifier IC | TDA7850 | Main Frenqency | 1.575GHz |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*45W max | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language |
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
|
Interface type | USB2.0 |
| Built in |
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
|
Frequency | 2.4-2.484GHz |
|
Support |
Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
|
Modulation | OFDM/DBPSK/DQPSK/CCK |
Product Description
-
Android 12.0 Operating System
ARM 12NM Octa-Core, 64 bit CPU
2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55
-
Built-in Android Auto & Apple Carplay
Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.
-
Support OEM Factory Camera
Support AHD reversing signal input with a resolution of 1080p.
Click this picture to buy this camera.
-
Support Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
-
2.5D QLED Display Screen
2.5D,prevent scraping, QLED screen for all viewing angles very clear.
What is 2.5D?Please check this video.
https://youtu.be/klQffAjZ4fc
-
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps:google/here/sygic/tomtom/waze/igo... -
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
-
Build-in 32 Equalizer Digital Signal Processing(DSP)
Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.
-
Optional
-
Package
Pros:
The unit itself came with full connectors and all adapters needed to hook right up to existing car connections. The unit also fit into the existing trim space perfectly and looks great installed, as well as being highly feature-rich and far more functional than the old one.
Cons:
Couldn't find any set of instructions for hooking things up. All of the QR codes included went to either the generic idoing.com site or the link to the product on that site, neither of which had directions included. The unit came with several pages of instructions with pictures but that only detailed how to hook up ONE of the dozen or so connections for the unit.
Despite being what was promised as a 'plug n play' unit and double checking that my car trim and make/model were the correct one for this unit, the old mounting bracket had to be modified considerably (drilled several new holes in it) to be able to accommodate the new unit and where it needed to be mounted. Was pretty disappointed in this, and by far was the most time consuming portion of the install.
