Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2018-2021

Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2018-2021

SKU:KT2133-NOHK

Regular price $429.99 USD
Regular price $0.00 USD Sale price $429.99 USD
Sale Sold out
View full details

Collapsible content

Product Parameters

Brand Idoing Multi media Parameters
Din  1 din Music Format MP3,WMA,AAC,RM,FLAC etc
Operating System Android 12 system Picture Format JPG/BMP/JEPG/GIF/PNG
CPU ARM 12NM , Octa core  2.0 GHZ 2*A75+1.8GHZ 6*A55 Video Format MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip
DDR
SAMSUNG DDR3 4GB
Radio Parameters
EMMC 64GB Frenqency Range FM:76.0MHz-108.0MHz
AM: 522KHz-1620KHz
Max External Memory 128G Country Australia,Europe,Russia, USA1,USA2,
Radio FM/AM Amplifer Parameters
Screen 2.5D IPS Full Touch Screen Test Voltage 14.4V
Screen Resolution 1280*720 Max output power 4*50W
GPU ARM Mali G52 614.4MHz GPS Parameters
Radio IC NXP 6686 Support Map Map:google/here/sygic /tomtom/waze/igo...
Power amplifier IC TDA7850 Main Frenqency 1.575GHz
Bluetooth IC BC 5.0   WIFI Parameters
Power supply 4*45W max RF Power 15dBM
Video Decoder 1080P HW Power supply Vcc_3.3V
DSP 32-Bands Equalisation Suppoted Protocol/standard IEEE802.11B/g/n compatible WLAN
OSD Language
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
Interface type USB2.0
Built in
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
Frequency 2.4-2.484GHz

Support

Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
Modulation OFDM/DBPSK/DQPSK/CCK
  • Android 12.0 Operating System

    ARM 12NM Octa-Core, 64 bit CPU

    2.0GHz,Dual-Core ARM Cortex A75

    1.8GHz,Hexa-Core ARM Cortex A55

  • Built-in Carplay(wireless+wire) And Android Auto

    Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.

  • Support OEM Factory Camera

    Support AHD reversing signal input with a resolution of 1080p.

    Click this picture to buy this camera.

  • Support Steering Wheel Control

    Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.

  • 2.5D IPS QLED Full Touch Screen

    2.5D,prevent scraping,IPS screen for all viewing angles very clear.

  • Cool 3D Navigation (GPS+Glonass Dual Satellite)

    1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
    2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
    3.Support maps:google/here/sygic/tomtom/waze/igo...

  • Qualcomm bluetooth 5.0

    1.Built-in bluetooth for hand free calling.

    2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

    3.Can connect your phone and our OBD dongle simultaneously.

    4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).

    5.Can not support:file transfer,internet sharing.

  • Build-in 32 Equalizer Digital Signal Processing(DSP)

    Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.

  • Optional

  • Package

Customer Reviews

Based on 9 reviews
78%
(7)
22%
(2)
0%
(0)
0%
(0)
0%
(0)
R
Ryan

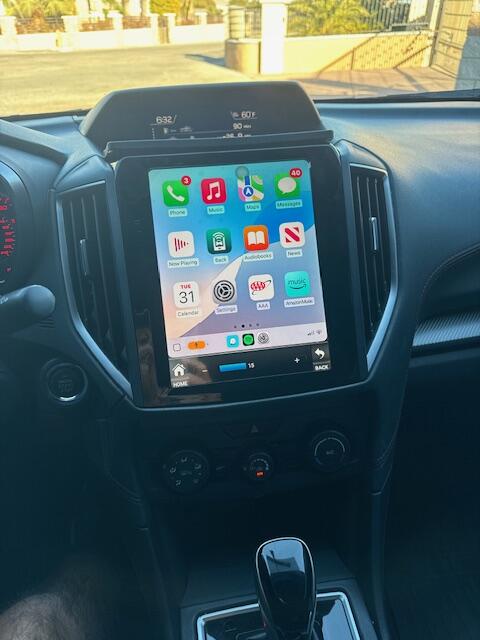

overall good unit!

overall satisfied. 8/10
heres some pros n cons.

cons:
- screen could be brighter
- lose 2 upper center dash info screen tabs. (music info and local weather)

-no real instructions. all plug n play but would have been nice to know what i was looking at. later when done, remembered this site had pic of cables/ back of unit. also didnt realize id have to remove starlink and Sirius boxes and just set them loose in dash under this unit.

-did not receive correct adapter to power lower dash Usb ports.

-only has 2 desktop layouts, and cannot remove ugly car from either screen.

- cannot change top row desktop icons

-face of radio mic and rear connection/box to use oem mic suck. lapel mic seems ok but not as good as original.

pros:
-wireless android auto!
-retains all oem functions and settings! ( steering wheel, auto doorlock settings, defrost timer etc)
-has youtube, web browsers, googleplay!
-quick startup and responsive screen
-great fitment

B
Brad Farabaugh

Very easy to install and excellent quality. But more importantly is their customer service. Have a question or an issue? They get back to you so fast with help. Nothing but good things to say about the head unit and company.

J
Juan Sanchez
2018 Impreza sport

Installation was a little tricky if you have starlink. You have to remove and transfer the starlink to the new system and somehow tape it to the new system otherwise the front speakers will not work. Over all small issues but super happy with the fit and the sound quality itself 2018 Impreza sport> i wish they made one for F350
Please enter

L
Luis Medina
Fit like a gloves

Its a plug and play like an OEM looking for 2019 Subaru Forester. My only complaint is when im using gps using apple carplay. The voice volume navigation is so low when Radio is operating while gps is on active navigation.

V
Vincent Jaramillo
OEM fit

So far so good. Fit is seamless, installation was a bit tricky but once issues figured out works great. Responsive screen. Works great with Android Auto. CON: My steering wheel volume and station changing buttons don't work. No skin options preloaded. I also noticed that the unit doesn't have any power off, volume, and back buttons on the driver side of the screen.
