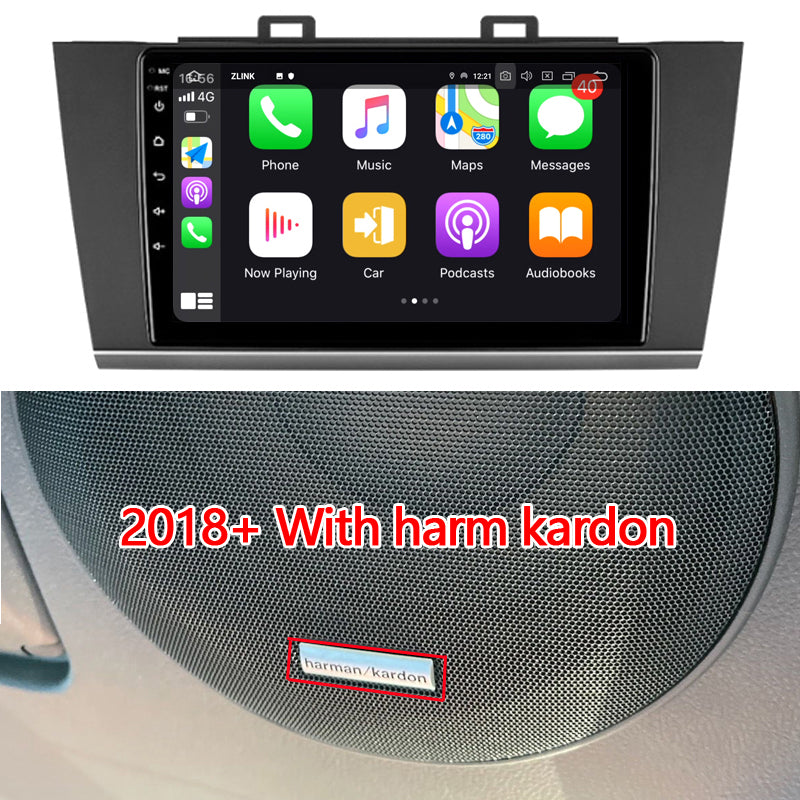

Idoing 9inch Android 12 Radio Head Unit For Subaru Outback 5 Legacy 6 Levorg 2014-2019
Idoing 9inch Android 12 Radio Head Unit For Subaru Outback 5 Legacy 6 Levorg 2014-2019
SKU(재고 관리 코드):PPP2336-nocan
픽업 사용 가능 여부를 로드할 수 없습니다.

축소 가능한 콘텐츠
Product Parameters
| Brand | Idoing | Multi media Parameters | |
| Din | 1 din | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 12 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| CPU | ARM 12NM , Octa core 2.0 GHZ 2*A75+1.8GHZ 6*A55 | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip |
| DDR |
SAMSUNG DDR3 4GB
|
Radio Parameters | |
| EMMC | 64GB | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Max External Memory | 128G | Country | Australia,Europe,Russia, USA1,USA2, |
| Radio | FM/AM | Amplifer Parameters | |
| Screen | 2.5D IPS Full Touch Screen | Test Voltage | 14.4V |
| Screen Resolution | 1280*720 | Max output power | 4*50W |
| GPU | ARM Mali G52 614.4MHz | GPS Parameters | |
| Radio IC | NXP 6686 | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Power amplifier IC | TDA7850 | Main Frenqency | 1.575GHz |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*45W max | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language |
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
|
Interface type | USB2.0 |
| Built in |
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
|
Frequency | 2.4-2.484GHz |
|
Support |
Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
|
Modulation | OFDM/DBPSK/DQPSK/CCK |
Product Description
-
Android 12.0 Operating System
ARM 12NM Octa-Core, 64 bit CPU
2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55
-
Built-in Android Auto & Apple Carplay
Supports wireless connection to share all iPhone/Android functions (like music, movies, and navigation) with the radio, no USB required. It’s also compatible with steering wheel controls, helping you stay focused on driving while adjusting settings.
-
Support OEM Factory Camera
Support AHD reversing signal input with a resolution of 1080p.
Click this picture to buy this camera.
-
Support Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
-
2.5D IPS QLED Full Touch Screen
2.5D,prevent scraping,IPS screen for all viewing angles very clear.
-
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps:google/here/sygic/tomtom/waze/igo... -
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
-
Build-in 32 Equalizer Digital Signal Processing(DSP)
Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.
-
Optional
-
Package
I recently purchased a 2017 Subaru Outback limited. It has the Harmon Kardon speaker system, navigation, etc. Even by 2017 standards that user interface and infotainment system that came stock in these Subaru’s was just awful. It was slow, would drop connection constantly whether using Bluetooth or USB. It had built in apps that were even more useless. And the graphics were just embarrassing. Worst of all, no way to have Apple CarPlay!
I went looking for aftermarket options. Most were just way too expensive and would have involved irreversibly altering the vehicle wiring and/or console. I stumbled into this iDoing system on YouTube and figured I’d give it a try. The install looked pretty easy, and if anything didn’t deliver on its promise I knew I could just put the old system right back in place.
I have never installed a car radio but I’m a pretty handy person and can fix just about anything. I’d say that technically this was an easy install, but there were some frustrating things (mostly Subaru’s fault), but nothing so bad that I’d deter a person from trying. Just make sure you allow yourself more time than you’d think. I spent a solid four hours. I had various things I had to trouble shoot, and figuring out where to run wires, etc just took time. I was methodical though because I wanted everything done right. Be sure to find videos on YouTube. Expect your results to vary somewhat as you might be surprised how Subaru has your cables run.
Over all, the display quality and sound quality are incredible. I don’t have an external amplifier but I noticed this head unit dramatically improved the sound quality from the speakers. The wireless Apple CarPlay connects very fast every time I get in the car. That’s really all I needed.
It also worked with my Subaru back up camera with no issues. Again, and improvement in image quality and it even retained the back up lines in the image. All sensor sounds come through really well too. Maybe I’ll make my own install video because I think you’ll find it handy … 🤔
Oh, I really like how great it looks in the vehicle. If I had one wish it would be for a tactile volume know. My wife got in and the radio was blaring and she was trying desperately to adjust the volume via the temperature control knobs! 😂 Thankfully the steering wheel controls were easy to program too!
Really nice fit in my Subaru Legacy. Very straightforward assembly and installation was intuitive.
Shipping got held up in California….other that, transaction went fine. Have not installed the unit yet.
Great service!
Shipping was fast even though it was international. The head unit works excellently. The instructions are not great tho and I went through several Youtube videos to get it installed properly. Overall very happy.
