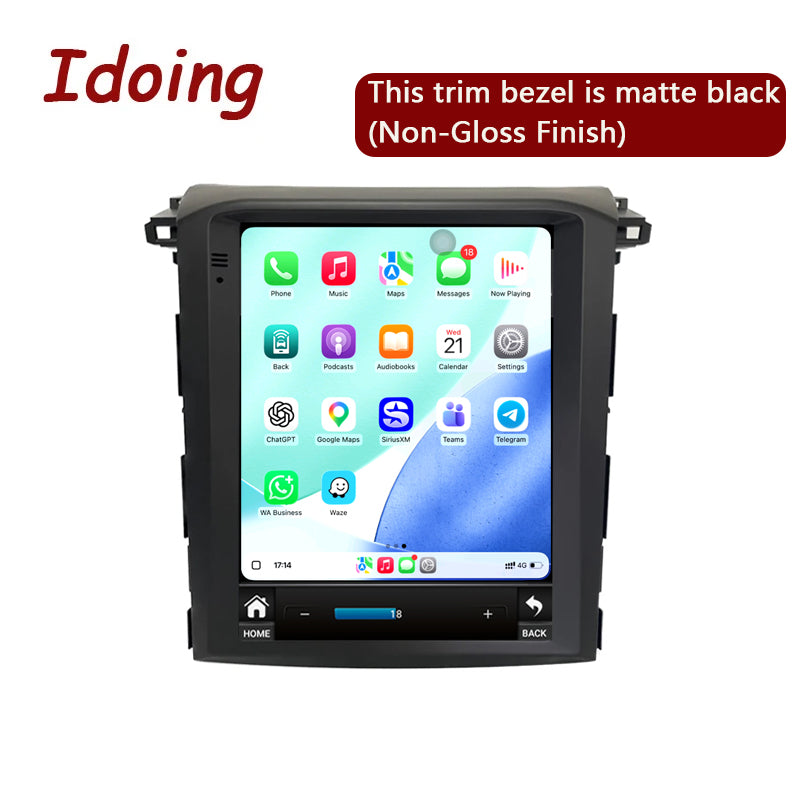

Idoing 9.7inch Android 14 Radio Head Unit | Plug and Play | For Subaru Forester Impreza XV Crosstrek 2017-2021
Idoing 9.7inch Android 14 Radio Head Unit | Plug and Play | For Subaru Forester Impreza XV Crosstrek 2017-2021
SKU(재고 관리 코드):KT2133-NOHK
픽업 사용 가능 여부를 로드할 수 없습니다.

축소 가능한 콘텐츠
Product Parameters
| Brand | Idoing | Multi media Parameters | |
| CPU | UI7865 | Music Format | MP3,WMA,AAC,RM,FLAC etc |
| Operating System | Android 14 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
| GPU | Dual-core Arm® Cortex®-A75 processor up to 2.2GHz, six-core Arm® Cortex®-A55 processor up to 1.8GHz |
Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip |
| DDR | SAMSUNG DDR3 4GB | Radio Parameters | |
| EMMC | 64GB | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
| Din | 1 din |
Country | Australia,Europe,Russia, USA1,USA2, |
| Radio | FM/AM | Amplifer Parameters | |
| Screen | 2.5D IPS Full Touch Screen | Test Voltage | 14.4V |
| Screen Resolution | 1280*720 / 2000*1200(Optional) | Max output power | 4*50W |
| Max External Memory | 128G | GPS Parameters | |
| Radio IC | NXP6686 | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
| Power amplifier IC | TDA7850 | Main Frenqency | 1.575GHz |
| Bluetooth IC | BC 5.0 | WIFI Parameters | |
| Power supply | 4*50W max | RF Power | 15dBM |
| Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
| DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| OSD Language |
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
|
Interface type | USB2.0 |
| Built in | Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI | Frequency | 2.4-2.484GHz |
|
Support |
Support external Car-Play,Andriod Auto, DAB+, Bluetooth,OBD2,Reverse Camera,USB DVR | Modulation | OFDM/DBPSK/DQPSK/CCK |
Product Description
-
Android 12.0 Operating System
ARM 12NM Octa-Core, 64 bit CPU
2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55
-

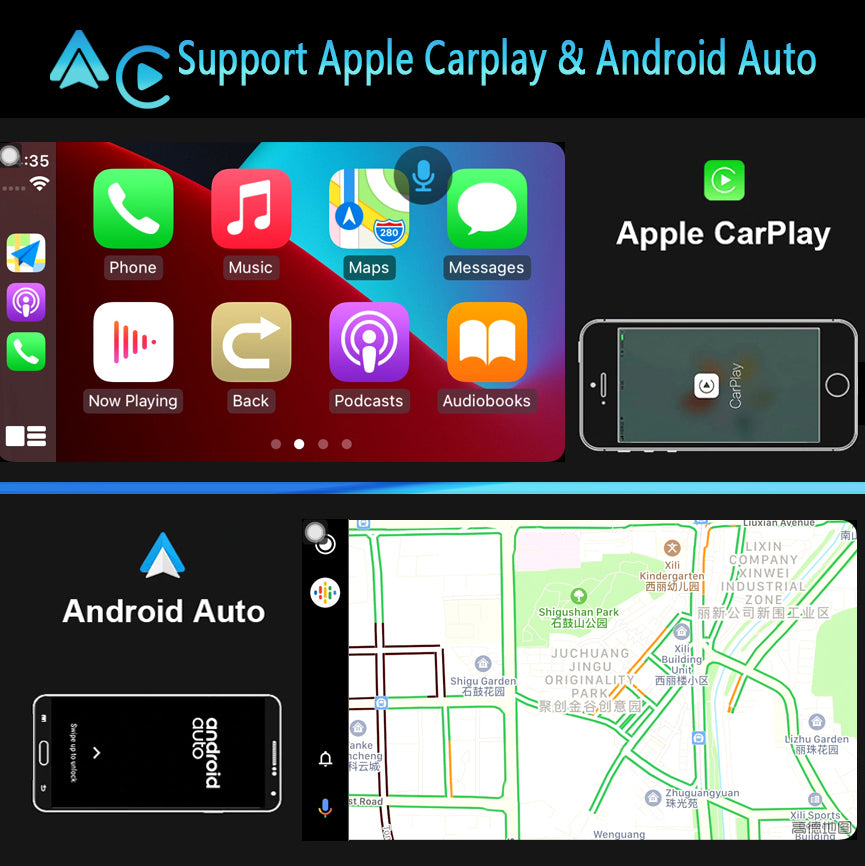

Built-in Android Auto & Apple Carplay
Supports wireless connection to share all iPhone/Android functions (like music, movies, and navigation) with the radio.
It's also compatible with steering wheel controls, helping you stay focused on driving while adjusting settings.
-
Support OEM Factory Camera
Support AHD reversing signal input with a resolution of 1080p.
Click this picture to buy this camera.
-

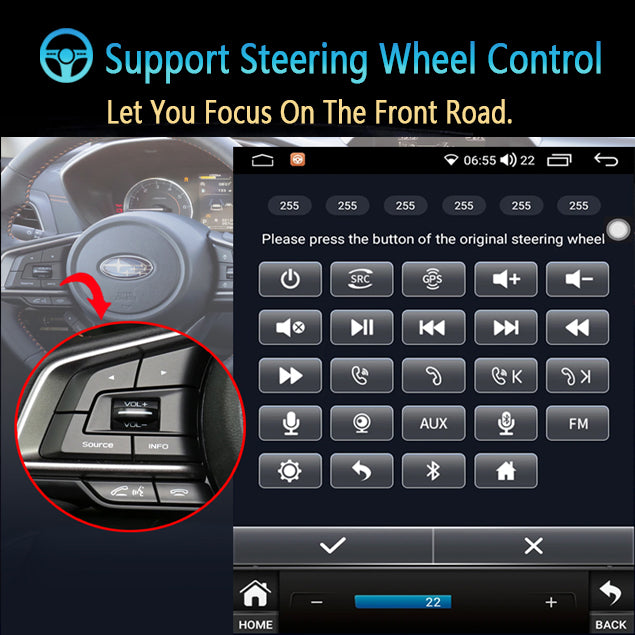

Support Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
-
2.5D IPS QLED Full Touch Screen
2.5D,prevent scraping,IPS screen for all viewing angles very clear.
-
Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps:google/here/sygic/tomtom/waze/igo... -
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).
3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
-
Build-in 32 Equalizer Digital Signal Processing(DSP)
Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.
-
