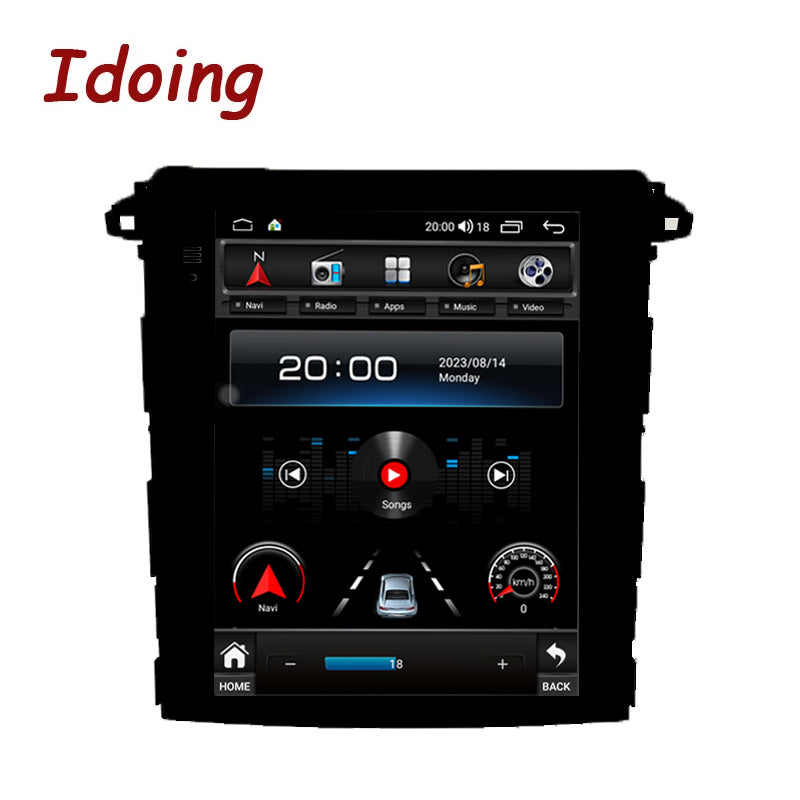

Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2017-2021
Idoing 9.7inch Android 12 Radio Head Unit For Subaru Forester Impreza XV Crosstrek 2017-2021
SKU(재고 관리 코드):KT2133-NOHK
픽업 사용 가능 여부를 로드할 수 없습니다.















축소 가능한 콘텐츠
Product Parameters
Brand | Idoing | Multi media Parameters | |
Din | 1 din | Music Format | MP3,WMA,AAC,RM,FLAC etc |
Operating System | Android 12 system | Picture Format | JPG/BMP/JEPG/GIF/PNG |
CPU | ARM 12NM , Octa core 2.0 GHZ 2*A75+1.8GHZ 6*A55 | Video Format | MPEG1/2/4,H264,H263, VC1,RV,H265, DivX,Sorenson,SparK,Spark, VP8,AVS Streamhellip |
DDR |
SAMSUNG DDR3 4GB
|
Radio Parameters | |
EMMC | 64GB | Frenqency Range | FM:76.0MHz-108.0MHz AM: 522KHz-1620KHz |
Max External Memory | 128G | Country | Australia,Europe,Russia, USA1,USA2, |
Radio | FM/AM | Amplifer Parameters | |
Screen | 2.5D IPS Full Touch Screen | Test Voltage | 14.4V |
Screen Resolution | 1280*720 | Max output power | 4*50W |
GPU | ARM Mali G52 614.4MHz | GPS Parameters | |
Radio IC | NXP 6686 | Support Map | Map:google/here/sygic /tomtom/waze/igo... |
Power amplifier IC | TDA7850 | Main Frenqency | 1.575GHz |
Bluetooth IC | BC 5.0 | WIFI Parameters | |
Power supply | 4*45W max | RF Power | 15dBM |
Video Decoder | 1080P HW | Power supply | Vcc_3.3V |
DSP | 32-Bands Equalisation | Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
OSD Language |
English,Russian,Portuguese,Arabic,German,French...for up to 70 national languages
|
Interface type | USB2.0 |
Built in |
Wifi,GPS+GLONASS,Bluetooth,MIC,Split screen,Mirror Link for andriod phone and iphone,WIFI
|
Frequency | 2.4-2.484GHz |
Support |
Support external Car-Play,Andriod Auto,DAB+,Bluetooth,OBD2,Reverse Camera,USB DVR
|
Modulation | OFDM/DBPSK/DQPSK/CCK |
Product Description
-
Android 12.0 Operating System
ARM 12NM Octa-Core, 64 bit CPU
2.0GHz,Dual-Core ARM Cortex A75
1.8GHz,Hexa-Core ARM Cortex A55
-

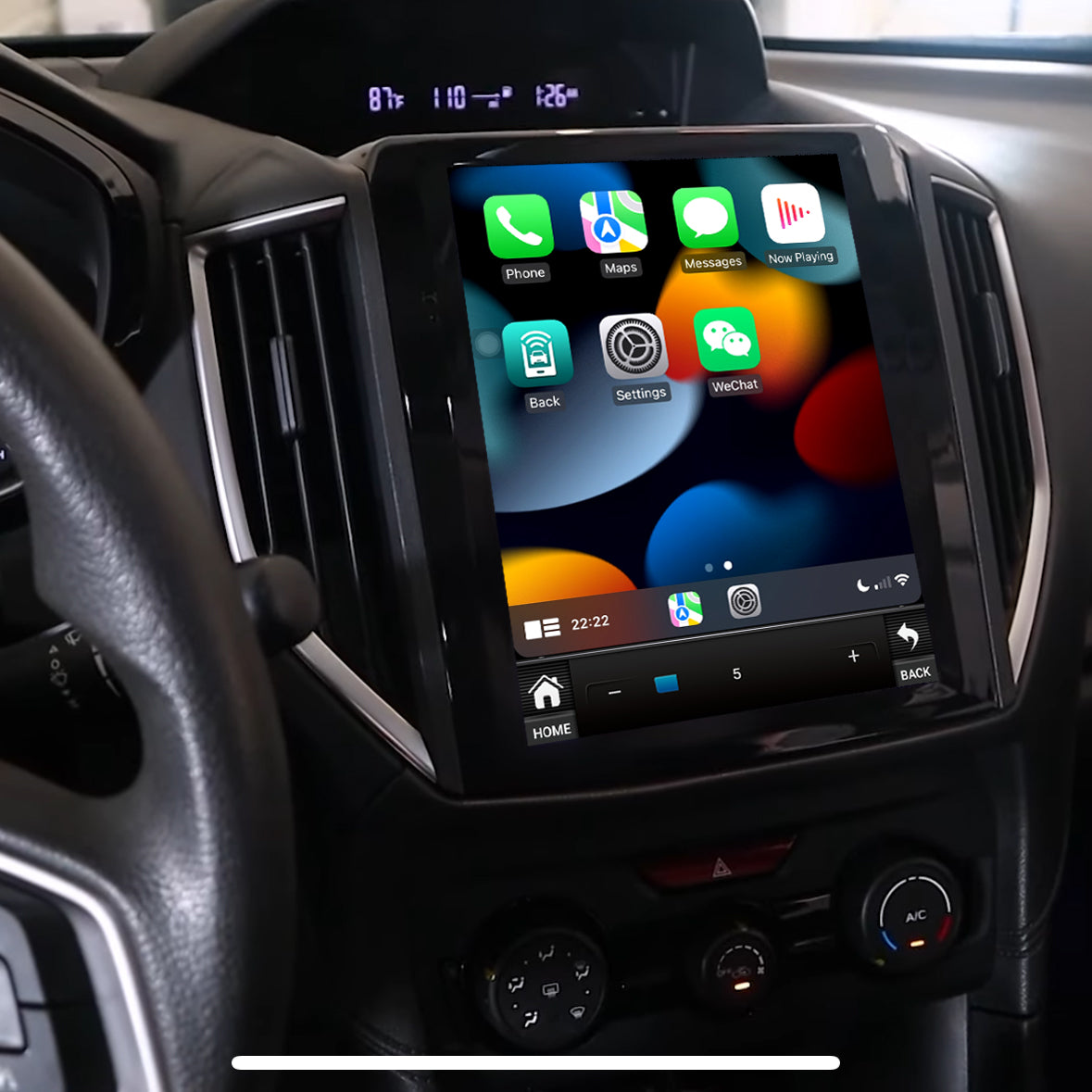

Built-in Carplay(wireless+wire) And Android Auto
Connect by usb slot,sharing iphone/Andriod phone full function to radio,such as voice commands to make phone calls,listen music,watching movies,read or send messags.
-

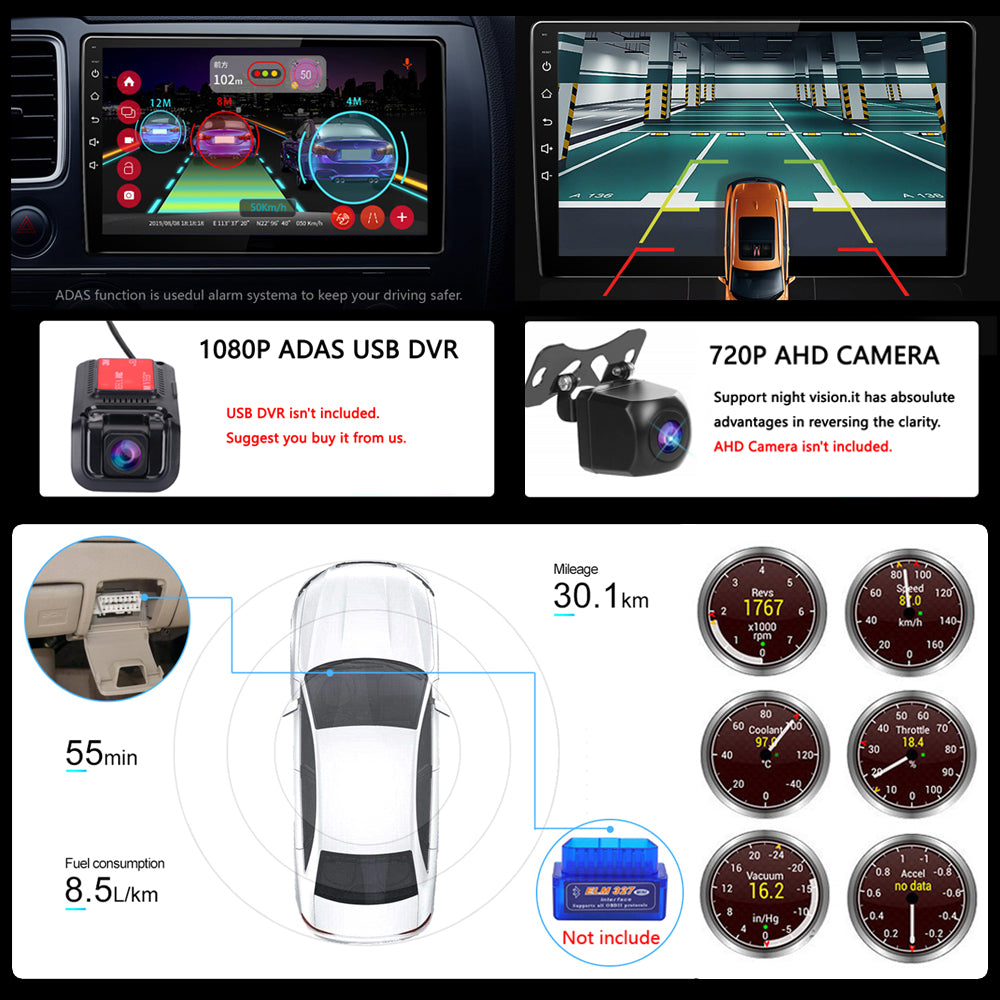

Support OEM Factory Camera
Support AHD reversing signal input with a resolution of 1080p.
Click this picture to buy this camera.
-

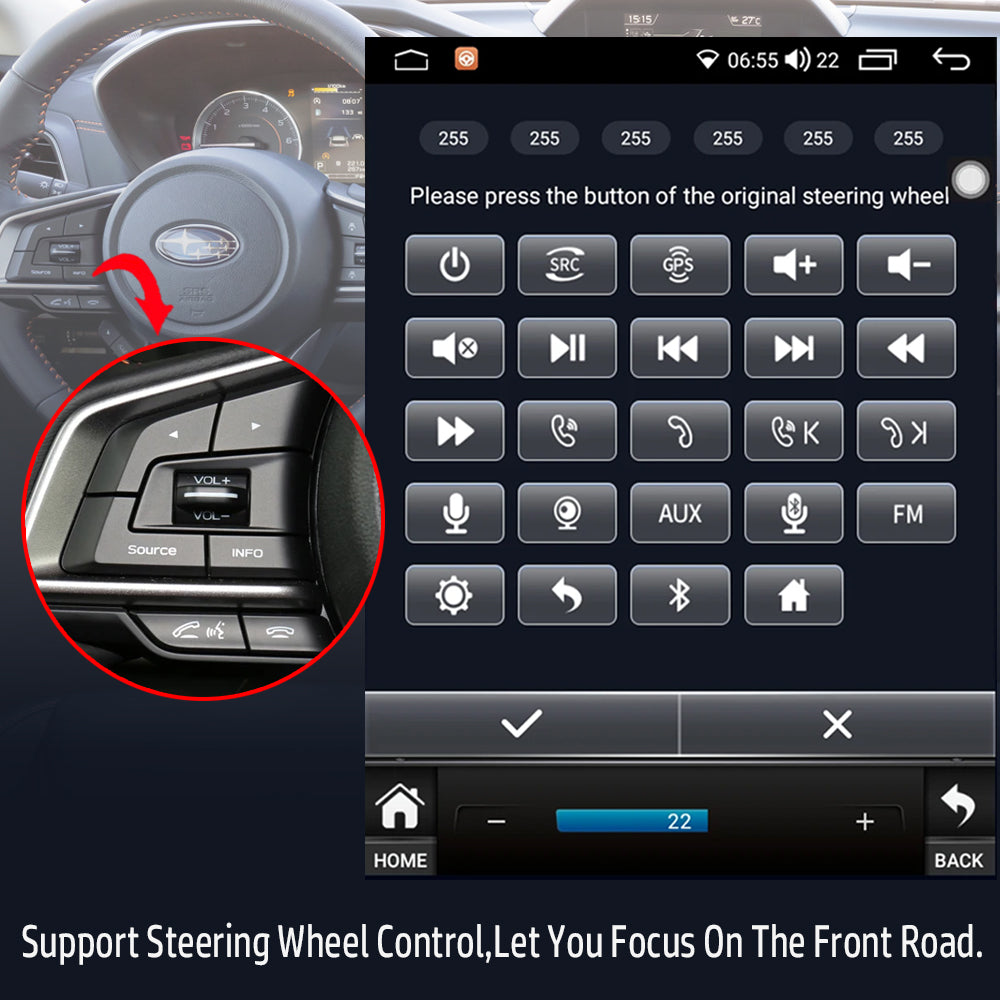

Support Steering Wheel Control
Steering wheel remote adaptor ready to take control of your music safely on the move, with this function,you can intently focus straight ahead, which will make the driving safer.
-

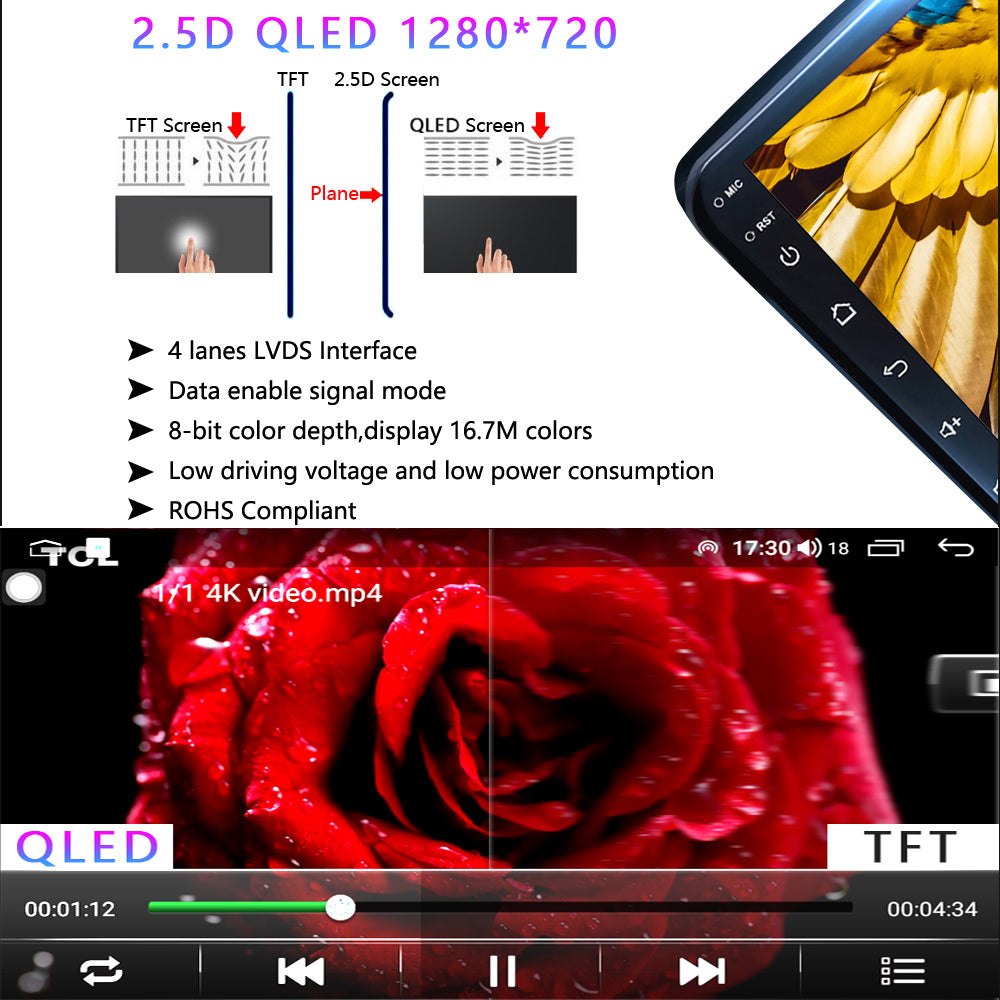

2.5D IPS QLED Full Touch Screen
2.5D,prevent scraping,IPS screen for all viewing angles very clear.
-

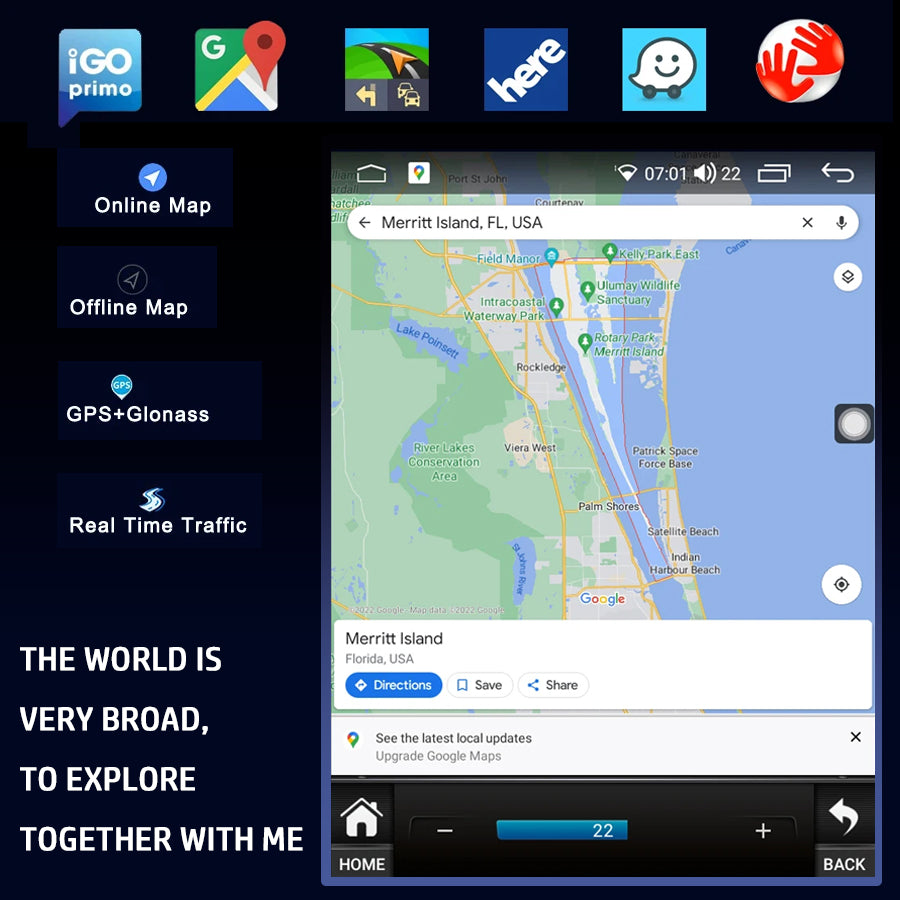

Cool 3D Navigation (GPS+Glonass Dual Satellite)
1.Built-in GPS+GLONASS dual satellite positioning system, more accurate positioning, stronger GPS signal.
2.Support GPS dual-zone function,map can be run the background to achieve music navigation functions.
3.Support maps:google/here/sygic/tomtom/waze/igo... -
Qualcomm bluetooth 5.0
1.Built-in bluetooth for hand free calling.
2.Phonebook fuction(avaliable for mobile support Bluetooth contacts output).

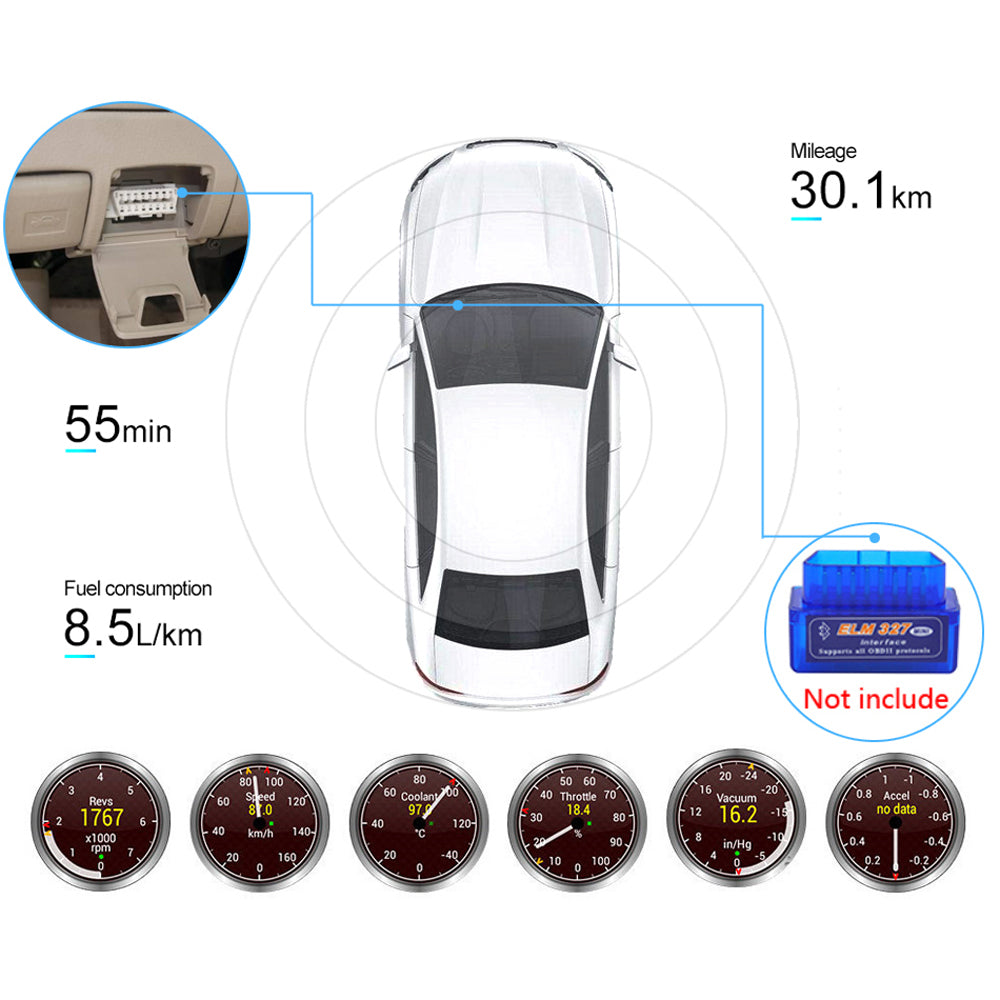

3.Can connect your phone and our OBD dongle simultaneously.
4.A2DP Bluetooth music(available for mobile support Bluetooth audio output).
5.Can not support:file transfer,internet sharing.
-

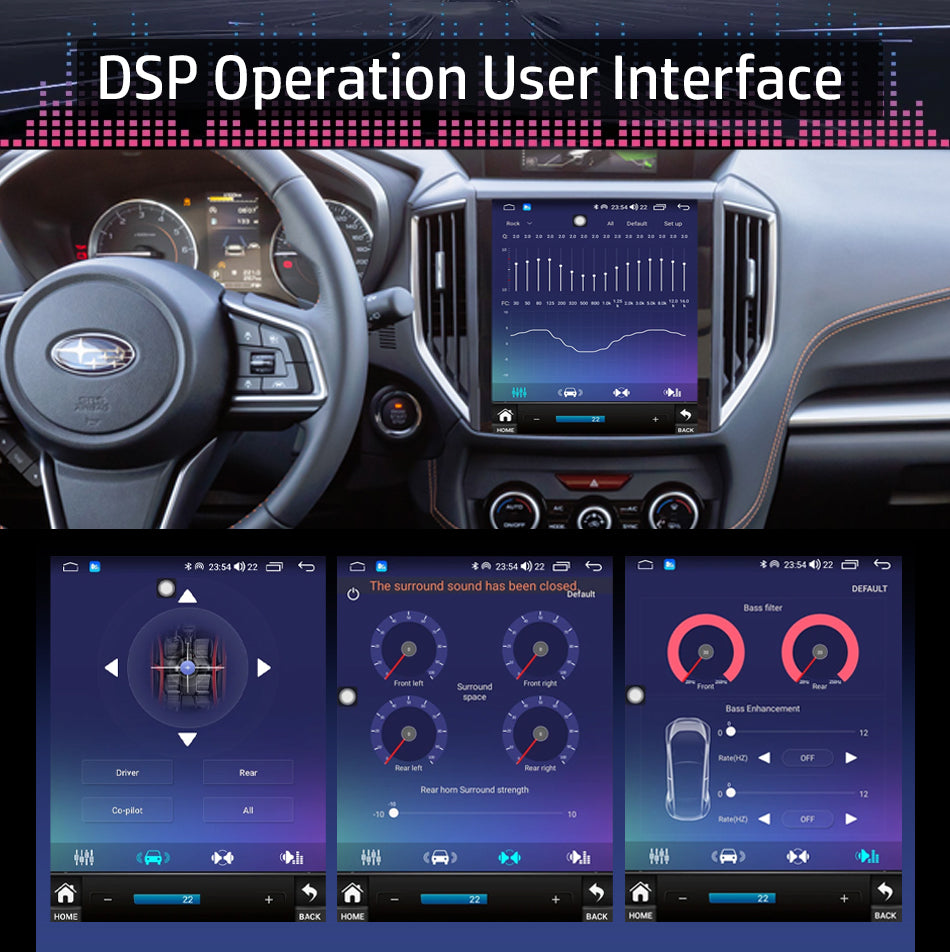

Build-in 32 Equalizer Digital Signal Processing(DSP)
Rohm 32107 is a powerful DSP chip that allows you have more power to control over the sound of various frequencies.You can control the timing of when the car's four speakers play sounds.This surround feeling gives you more advanced auditory enjoyment.
-

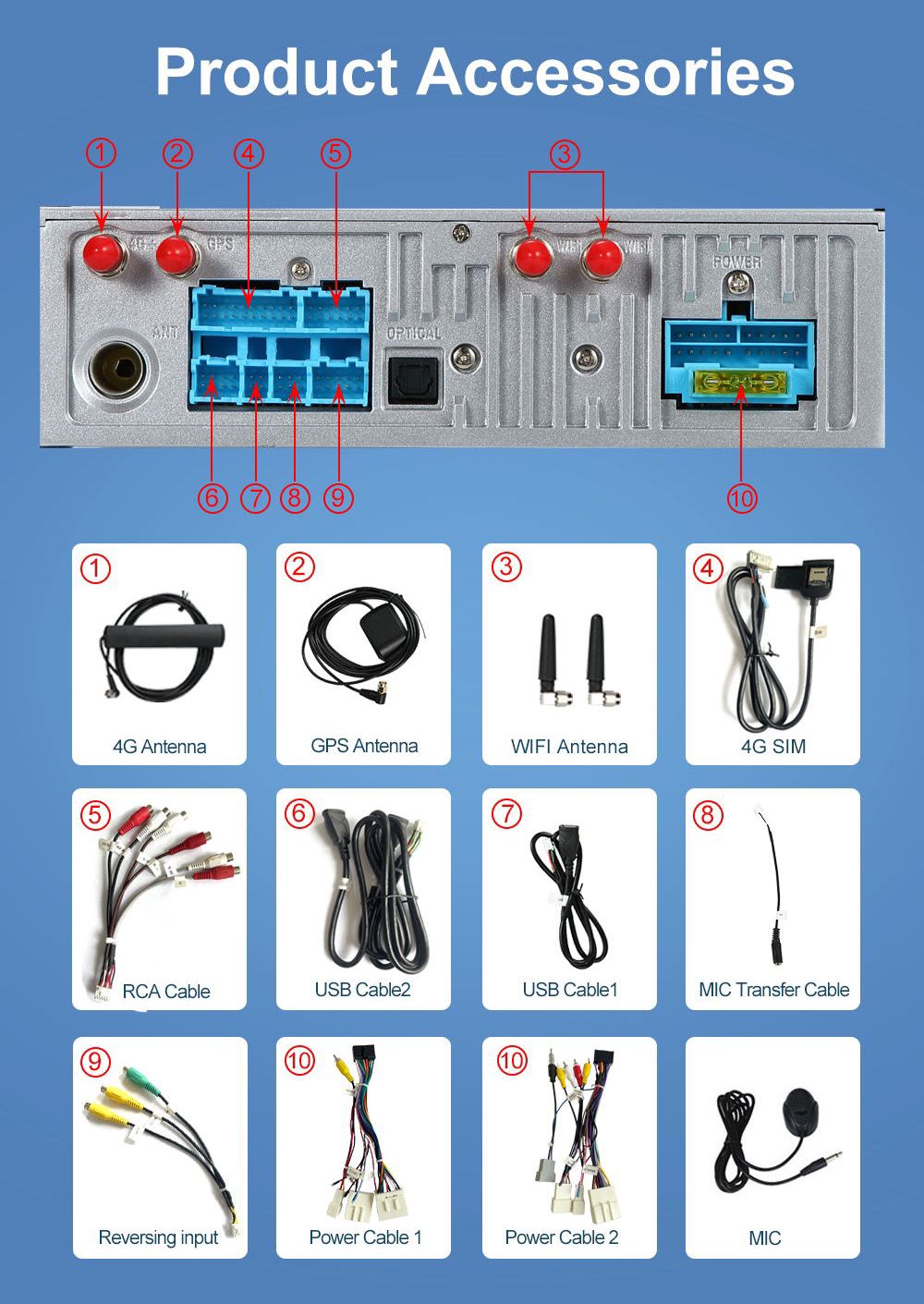

Optional
-
Package

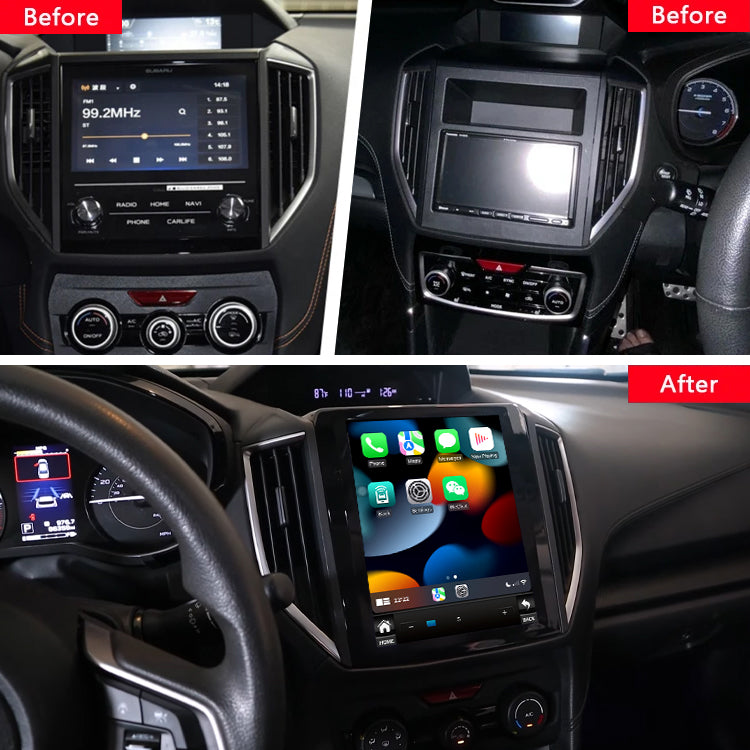

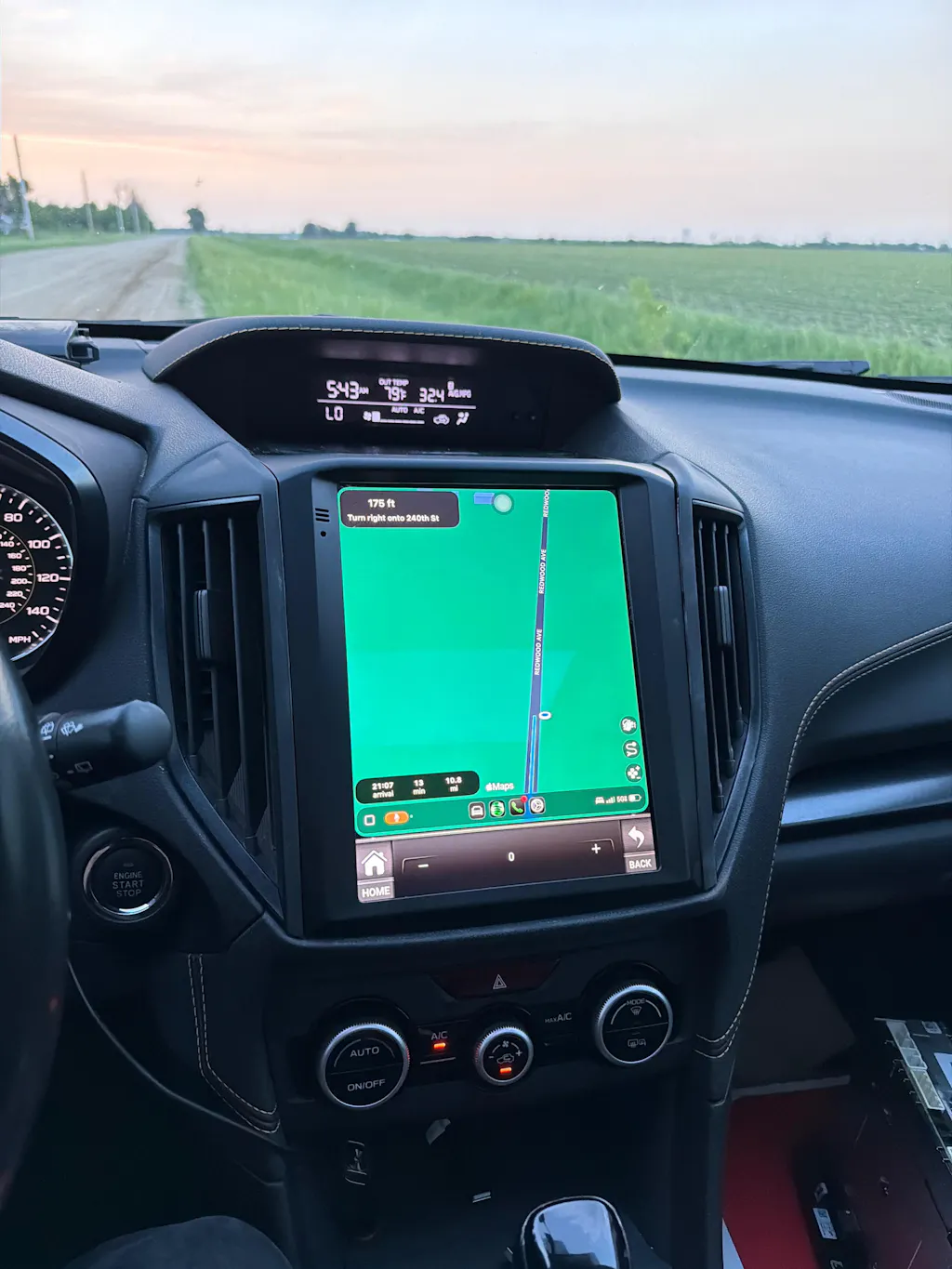

This thing is pretty awesome. I never installed an upgrade to my Subaru. Getting the original head unit out was pretty tough, but with some YouTube videos helping me I was able to do it. Installing the new device was so easy. It looks great and runs really well. If you have any knowledge of diy car upgrades this will be a dead simple install. Highly recommend the Subaru head unit after 4 weeks of use.
Works great. Wish there was an easy way to change the default backup camera on the unit.
Item arrive promptly and well packaged. Not exactly plug and play, but suspect that because my car was imported from Japan that wiring was not totally factory caused my frustration. Once installed, set up was easy for steering wheel controls and radio function.
Only down side was when I removed the protective film from screen there seemed to faint marks on the screen from factory that I can’t seem to clean off. Looking at installing a screen protector. Surprised this was not offered as an add on extra.
Very easy to install and excellent quality. But more importantly is their customer service. Have a question or an issue? They get back to you so fast with help. Nothing but good things to say about the head unit and company.
Installation was a little tricky if you have starlink. You have to remove and transfer the starlink to the new system and somehow tape it to the new system otherwise the front speakers will not work. Over all small issues but super happy with the fit and the sound quality itself 2018 Impreza sport> i wish they made one for F350
